TPS73801 - 1A、低噪声、快速瞬态响应低压降线性稳压器

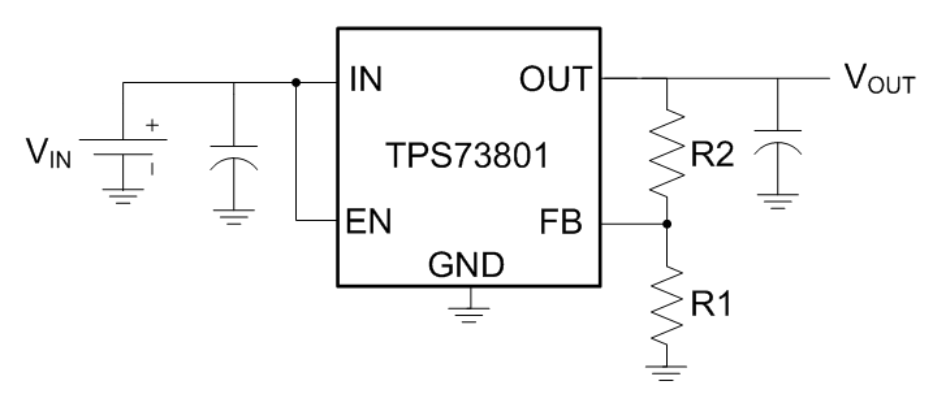

TPS73801是TI德州仪器公司的一款单通道LDO产品,TPS73801是1A、低噪声、快速瞬态响应低压降线性稳压器,本站介绍了TPS73801的封装应用图解、特点和优点、功能等,并给出了与TPS73801相关的TI元器件型号供参考。
TPS73801 - 1A、低噪声、快速瞬态响应低压降线性稳压器 - 单通道LDO - 线性稳压器(LDO) - 德州仪器
- Optimized for Fast Transient Response
- Output Current: 1.0 A
- Dropout Voltage: 300 mV
- Low Noise: 45 µVRMS (10 Hz to 100 kHz)
- 1-mA Quiescent Current
- No Protection Diodes Needed
- Controlled Quiescent Current in Dropout
- Adjustable Output Voltage: 1.21 to 20 V
- Less Than 1-µA Quiescent Current in Shutdown
- Stable With 10-µF Output Capacitor
- Stable With Ceramic Capacitors
- Reverse-Battery Protection
- No Reverse Current
- Thermal Limiting
- 3.3-V to 2.5-V Logic Power Supplies
- Post Regulator for Switching Supplies
- Portable/Battery-Powered Equipment.
The TPS73801 is a low-dropout (LDO) regulator optimized for fast transient response. The device can supply 1.0A of output current with a dropout voltage of 300mV. Operating quiescent current is 1mA, dropping to less than 1µA in shutdown. Quiescent current is well controlled; it does not rise in dropout as it does with many other regulators. In addition to fast transient response, the TPS73801 regulators have very low output noise, which makes them ideal for sensitive RF supply applications.
Output voltage range is from 1.21 to 20V. The TPS73801 regulators are stable with output capacitors as low as 10µF. Small ceramic capacitors can be used without the necessary addition of ESR, as is common with other regulators. Internal protection circuitry includes reverse-battery protection, current limiting, thermal limiting, and reverse-current protection. The devices are available as an adjustable device with a 1.21-V reference voltage. The TPS73801 regulators are available in the 6-pin TO-223 (DCQ) packages.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TPS73801 | SOT-223 (6) | 6.50 mm x 3.50 mm |
