REG710-5 - 具有固定 5V 输出的 30mA 开关电容 DC-DC 转换器

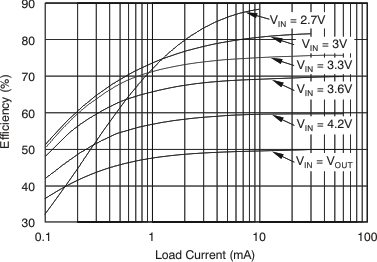

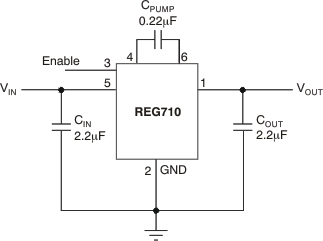

REG710-5是TI德州仪器公司的一款电荷泵（无感应器）产品，REG710-5是具有固定 5V 输出的 30mA 开关电容 DC-DC 转换器，本站介绍了REG710-5的封装应用图解、特点和优点、功能等，并给出了与REG710-5相关的TI元器件型号供参考。

REG710-5 - 具有固定 5V 输出的 30mA 开关电容 DC-DC 转换器 - 电荷泵（无感应器） - DC/DC开关稳压器 - 德州仪器

产品特性

Wide Input Voltage Range: 1.8 V to 5.5 V
Automatic Step-Up and Step-Down Operation
Low Input Current Ripple
Low Output Voltage Ripple
Minimum Number of External Components—No Inductors
1-MHz Internal Oscillator Allows Small Capacitors
Shutdown Mode
Thermal and Current Limit Protection
Six Fixed Output Voltages Available:
- 2.5 V, 2.7 V, 3 V, 3.3 V, 5 V, 5.5 V

产品应用

White LED Driver
Smart Card Readers
SIM Cards
Handheld devices
Modems
PCMCIA Cards
LCD Displays
Battery Backup Supplies

产品说明

The REG710 family of devices are switched capacitor voltage converters that generate regulated, low-ripple output voltage from an unregulated input voltage. A wide input supply voltage from 1.8 V to 5.5 V makes the REG710 family of devices ideal for a variety of battery sources, such as single-cell Li-Ion, or 2-cell and 3-cell nickel-based or alkaline-based chemistries.

The input voltage may vary above and below the output voltage and the output remains in regulation. The device works as step-up or step-down converters without the need of an inductor, providing low EMI DC-DC conversion. The high switching frequency allows the use of small surface-mount capacitors, saving board space and reducing cost. The REG710 device is thermally protected and current limited, protecting the load and the regulator during fault conditions. Typical ground pin current (quiescent current) is 65 μA with no load, and less than 1 μA in shutdown mode.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
REG710	SOT-23 (6)	2.90 mm × 1.60 mm
REG71050	SOT (6)	2.90 mm × 1.60 mm
REG71050	SON (6)	2.00 mm × 2.00 mm
REG71055	SOT-23 (6)	2.90 mm × 1.60 mm
