LP8731-Q1 - 具有 I2C 接口的 LP8731-Q1 双路高电流降压 DC/DC 和双路线性稳压器

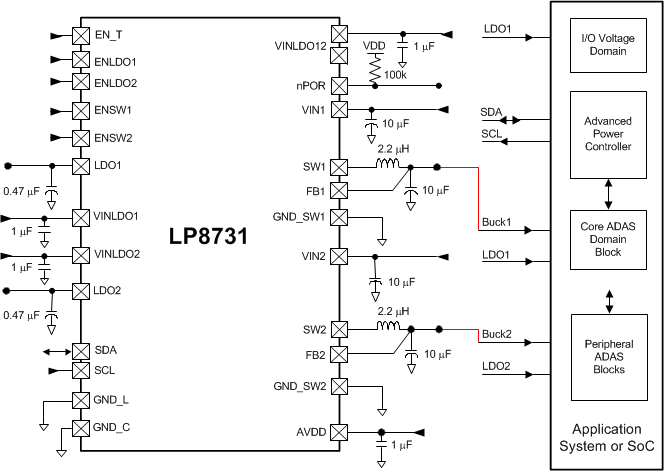

LP8731-Q1是TI德州仪器公司的一款无产品，LP8731-Q1是具有 I2C 接口的 LP8731-Q1 双路高电流降压 DC/DC 和双路线性稳压器，本站介绍了LP8731-Q1的封装应用图解、特点和优点、功能等，并给出了与LP8731-Q1相关的TI元器件型号供参考。

LP8731-Q1 - 具有 I2C 接口的 LP8731-Q1 双路高电流降压 DC/DC 和双路线性稳压器 - 无 - 电源管理多通道IC(PMIC)解决方案 - 德州仪器

产品特性

Two LDOs for Powering Internal Processor Functions and I/Os
High-Speed Serial Interface for Independent Control of Device Functions and Settings
Precision Internal Reference
Thermal Overload Protection
Current Overload Protection
Software Programmable Regulators
External Power-On-Reset Function for Buck1 and Buck2 (Power Good with Delay Function)
Undervoltage Lockout (UVLO)
LP8731-Q1 is an Automotive-Grade Product: AECQ-100 Grade-1 Qualified
Step-Down DC/DC Converter (2xBuck)
- Programmable VOUT from:
  - Buck1 : 0.8875 V – 1.675 V at 1.2 A
  - Buck2 : 0.8875 V – 1.675 V at 1.2 A
- Up to 96% Efficiency
- PWM Switching Frequency of 2.1 MHz
- ±2% Output Voltage Accuracy
- Automatic Soft Start
Linear Regulators (2xLDO)
- Programmable VOUT of 0.8 V to 3.3 V
- ±3% Output Voltage Accuracy
- 300-mA Output Current
- 30-mV (Typical) Dropout

产品应用

Configurable Output PMU for ADAS (Advanced Driver Assistance Systems)
FPGA, DSP Core Power
Applications Processors

产品说明

The LP8731-Q1 is a multi-function, programmable Power Management Unit (PMU), optimized for low power FPGAs, microprocessors, and DSPs. This device integrates two highly efficient 1.2-A step-down DC-DC converters with dynamic voltage management (DVM), two 300-mA linear regulators, and a 400-kHz I2C-compatible interface to allow a host controller access to the internal control registers of the LP8731-Q1. The LP8731-Q1 device additionally features programmable power-on sequencing.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (MAX)
LP8731-Q1	DSBGA (25)	2.52 mm x 2.52 mm
